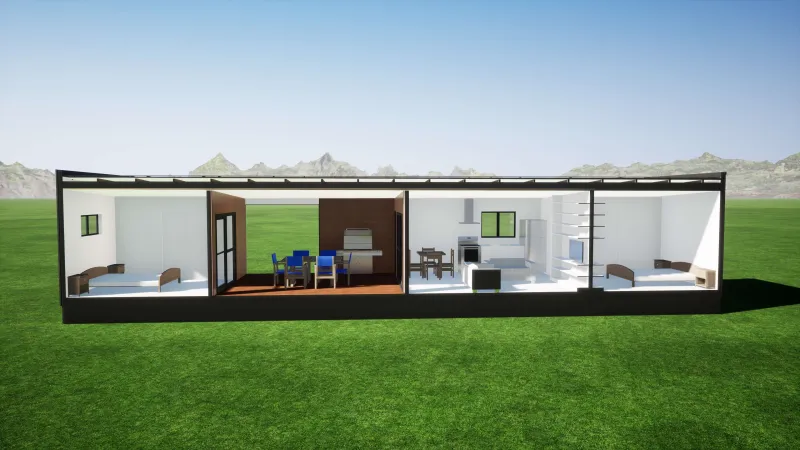

GABLE BreezewayPENT BreezewayGABLE BreezewayBreezeway SectionalBreezewayTwo cabin units integrated by a covered Breezeway. Pent, Gable or Cargo styles.

The Breezeway

Kitsets available from $52,955

The Breezeway offers twin living areas and sheltered outdoor living.

This 70m² Pent, Gable or Cargo style plan could be an ideal bach or holiday retreat where guests or extended family can stay over.

Being over 10m² it requires Building Consent.

Floor plans and images are a representation only.

Request a Custom Design

Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²

Available as Builders Kitset.

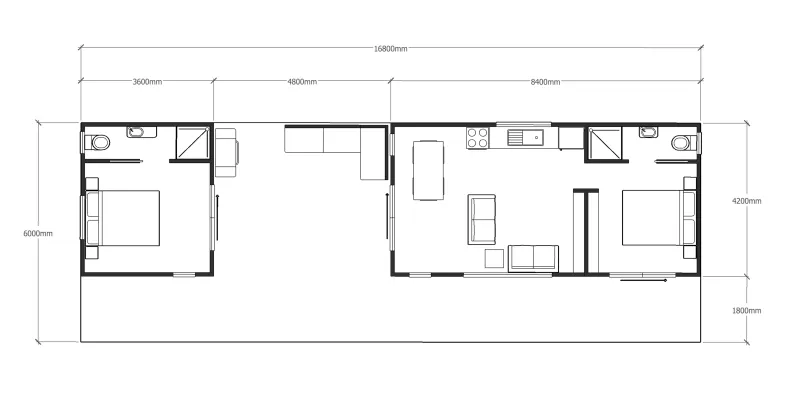

BREEZEWAY CABIN MODEL SPECS: (BWP8442-48-3642) - as shown
Cabin Sizes: 8.4m x 4.2 - 35.3m²
  3.6m x 4.2m - 15.1m²
Breezway: 4.8m x 4.2m - 20.2m²
Deck : 50m²
Frame: 90mm H1.2 Radiata
Floor: Bearers, H3.2 joists, 20mm P/board
Roof: Coloursteel
Cladding: 180mm Hardiplank W/board
Doors: Aluminium French or Sliders
Windows: Aluminium Awning
Deck : H3.2 pine
KITSET LOCKUP SHELL

EXTRAS

LINING KIT - From $5,837

Includes: Insulation- Pinkbatts, Plasterboard linings to cabin, Pine trim, Fixings and Fastenings.
MDF and 9mm ply are optional alternatives.

DECK STRUCTURE AND DECKING - From $6,450

OPTIONS

Doors: Change to slider or different sizes
Windows: Extra windows, different sizes
Floors: Treated plywood, underfloor insulation
Deck: Increase size as required
NOTE: Prices may vary due to location requirements



Lockup Shell:
Typically all items from joists up, including framing, flooring, roof, cladding and exterior joinery and all fixings and fastenings.
Units:
Any kitchen, laundry or bathroom units required

Kits can be supplied two ways:

MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising best material quotations for all materials delivered to site.

BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, joinery.
All materials including linings, delivered to site.

Finance available through TMF
