CABANA

Cabana Cabin

Hover for zoomClick to enlarge

Cabana CabinCB2736CB4124CB4124CB2736

Cabana Cabin - CB-series

Builders Kit available from $11,630

The stylish Cabana Cabin is the perfect addition for your backyard. Use it as a Garden Studio, Sleepout or separate entertaining area this summer. With a spacious covered deck the Cabana has great indoor, outdoor flow.

No Building Consent Required

If your cabin is under 10m² and with a maximum roof height under 3.5m, it is a suitable backyard addition that will generally not require Building consent, which makes them the ideal option for an owner build.

Models available:

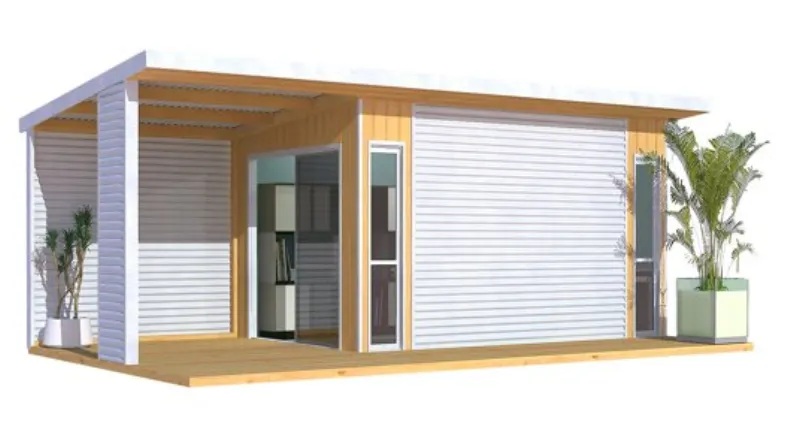

  • CB4124: 4.1m x 2.4m - 9.84m²   Deck Size - 3.6m x 2.4m & 4.1m x 0.8m

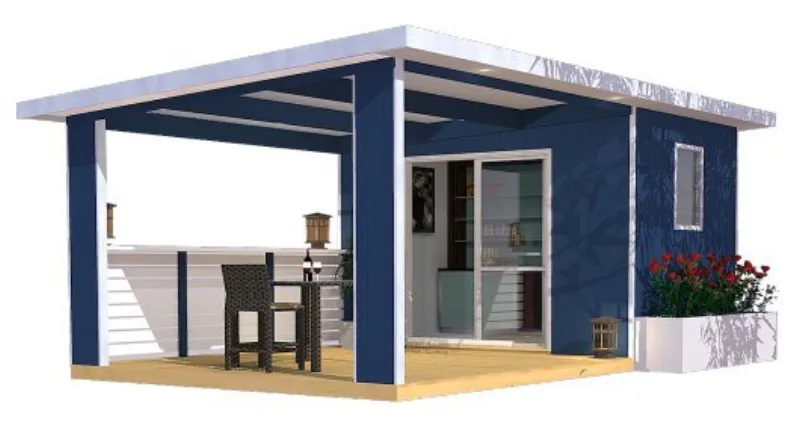

  • CB2736: 2.7m x 3.6m - 9.72m²   Deck Size - 3.6m x 3.6m

Floor plans and images are a representation only.

Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²

Available as a Builders Kitset.

CABANA CABIN MODEL SPECS
Frame: 90mm H1.2 Radiata
Floor: 20mm P/board, H3.2 Joists
Cladding: Trapezoidal Colorsteel & Shadowclad Ply
Roof: Trapezoidal Colorsteel
Doors: Aluminium Sliding Door, 2.0m high x 1.8m wide
Windows: Aluminium, 1 @ 0.8m high x 0.6m wide or 2 @ 2.0m high x 0.4mm wide
Deck: H3.2 pine
KITSET LOCKUP SHELL

EXTRAS

LINING KIT - From $1380

Includes: Insulation- Pinkbatts, Plasterboard linings to cabin, Pine trim, Fixings and Fastenings.
MDF and 9mm ply are optional alternatives.

FOUNDATION KIT - From $920 (Layout dependent)

Includes: Piles, Bearers and Fixings.

OPTIONS
Doors: Change to frenchdoor or different sizes
Windows: Extra windows, different sizes
Floor: Treated plywood, underfloor insulation
Deck: Increase size as required
NOTE: Prices may vary due to location requirements

Kits can be supplied two ways:

MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising best material quotations for all materials delivered to site.

BK Builders Supply
Ideal for builders or competent DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, joinery.
All materials including linings, delivered to site.



Finance available through TMF
