CARGO CABIN
Click to enlarge
The CargoCabin - CC-Series
Builders Kitset available from $12,165+gst
Get Your Cargo Cabin Quote Here

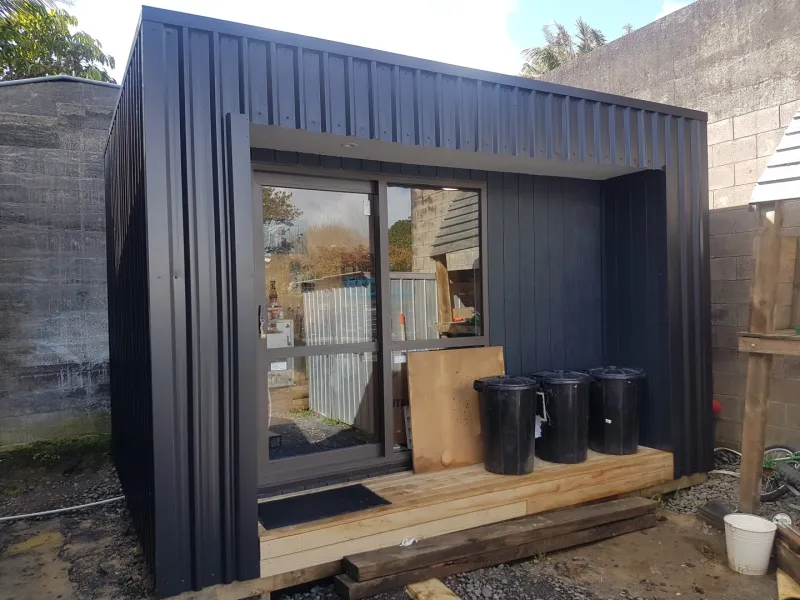

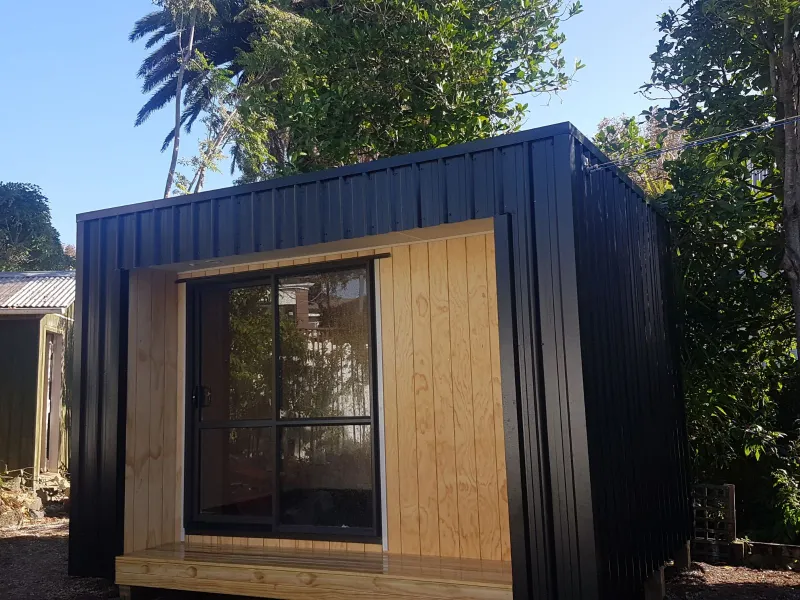

This 9.84m² CargoCABIN (CC 4.1 x 2.4) features a unique 'shipping container' styling with an integrated/covered entry deck.
It is an ideal sleepout, guest room, games room or home office.
Being under 10m² it is a suitable backyard addition, it will generally not require Building consent, which makes them the ideal option for an owner build.
Note that the actual footprint for this building including the deck is 4.1m x 3.0m.

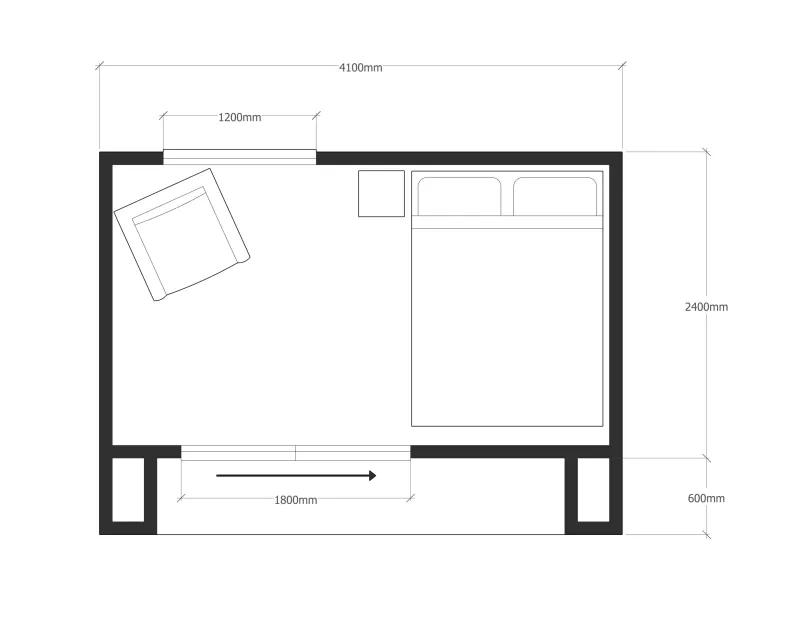

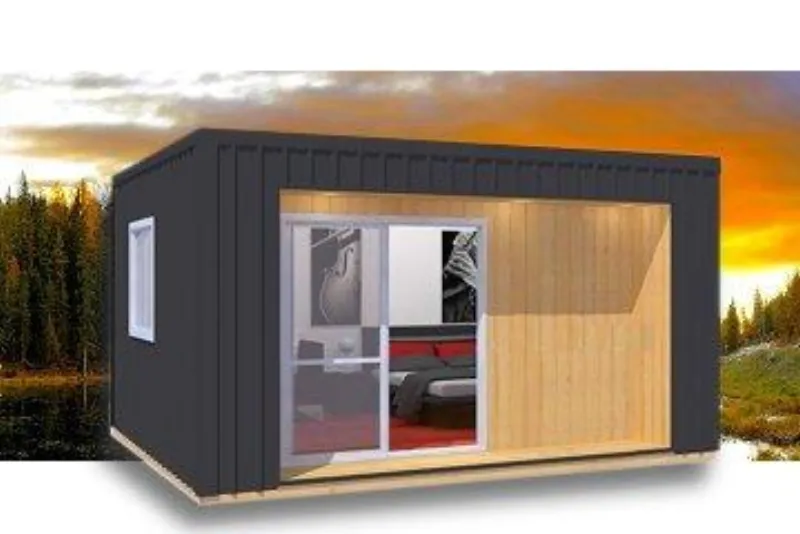

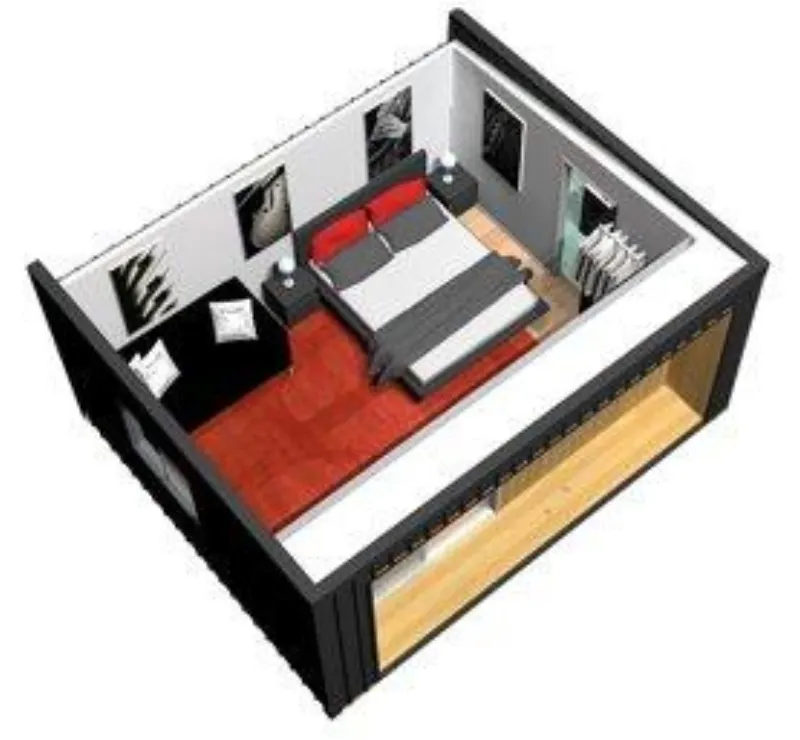

Floor plans and images are a representation only.
Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²
Available as Builders Kitset.
| CARGO CABIN MODEL SPECS | ||||
| Cabin Size: | 4.1m x 2.4m 9.84m² | |||
| Frame: | 90mm H1.2 Radiata | |||
| Floor: | 20mm P/board, H3.2 Joists | |||
| Cladding: | Trapezoidal Colour steel & Shadowclad Grovved H3 Plywood | |||
| Roof: | Trapezoidal Colour steel | |||
| Doors: | Aluminium Sliding Door, 2.0m high x 1.8m wide | |||
| Windows: | Aluminium, 1 @ 0.4m high x 1.2m wide | |||
| Deck: | 3.0m x 0.6m H3.2 pine | |||
| KITSET LOCKUP SHELL | ||||
|
EXTRAS LINING KIT - From $1635+gst Includes: Wall/Ceiling Insulation - Pinkbatts, Plasterboard linings to the cabin, Pine trim, Fixings and Fastenings. FOUNDATION KIT - From $1450+gst (Layout dependent) Includes: Piles, Bearers and Fixings. |
||||
| OPTIONS | ||||
| Doors: | Change to French door or different sizes | |||
| Windows: | Extra windows, different sizes | |||
| Floors: | Treated plywood, underfloor insulation | |||
| Deck: | Increase size as required | |||
| NOTE: Prices may vary due to location requirements | ||||
Kits can be supplied in two ways:
MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising the best material quotations for all materials delivered to the site.
BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, and joinery.
All materials including linings, delivered to site.
