EURO CABIN

Euro Cabin

Hover for zoomClick to enlarge

Euro CabinEuro CabinER3627ER4124ER2441Euro: ER3627Euro: ER3627

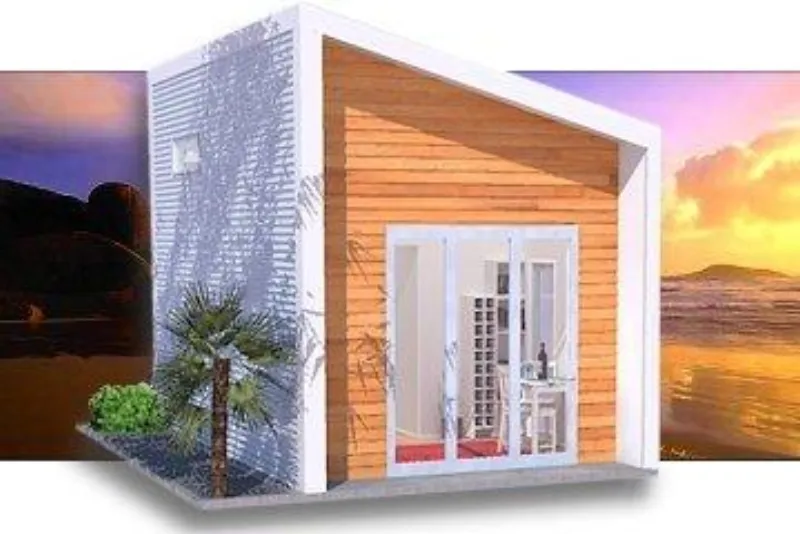

The Euro Loft Cabin - ER-Series

Builders Kitset available from $14,631

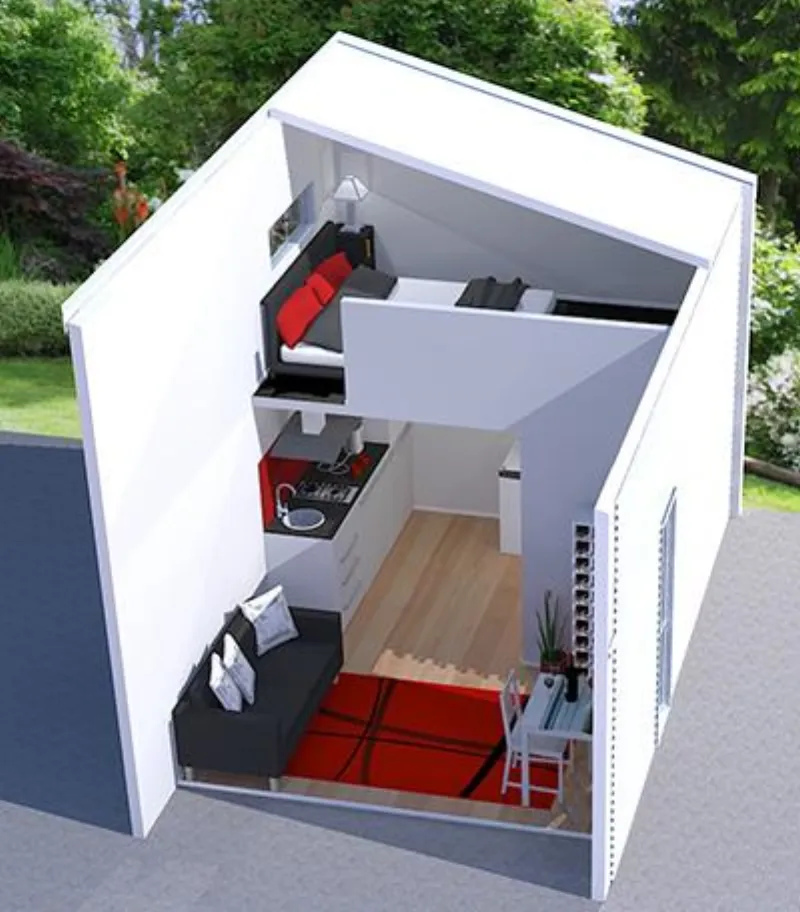

Offers a modern butruss design with loft mezzanine providing additional storage or sleeping space. It is an ideal sleepout, studio, games room or home office.

No Building Consent Required

If your cabin is under 10m² and with a maximum roof height under 3.5m, it is a suitable backyard addition that will generally not require Building consent, which makes them the ideal option for an owner build.

Models available:

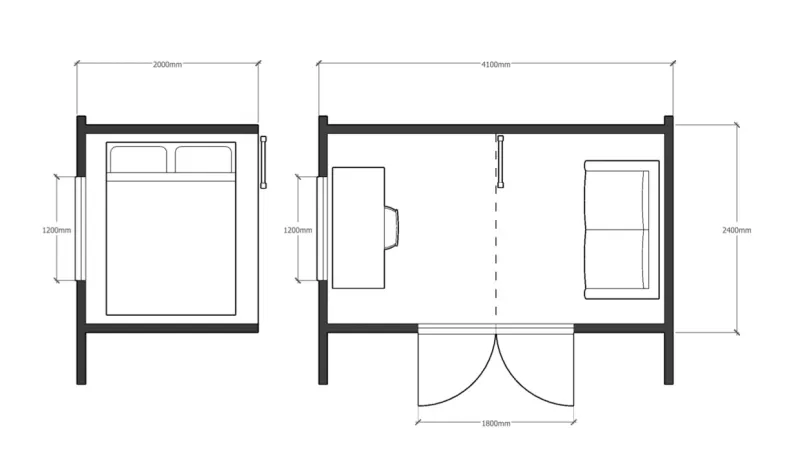

  • ER4124: 4.1m x 2.4m - 9.84m²   (Loft - 2.4m x 2.0m)

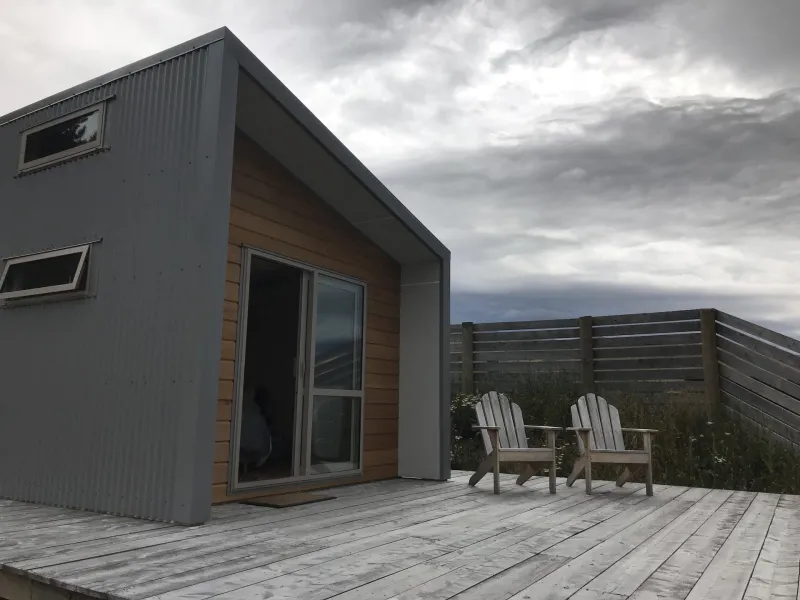

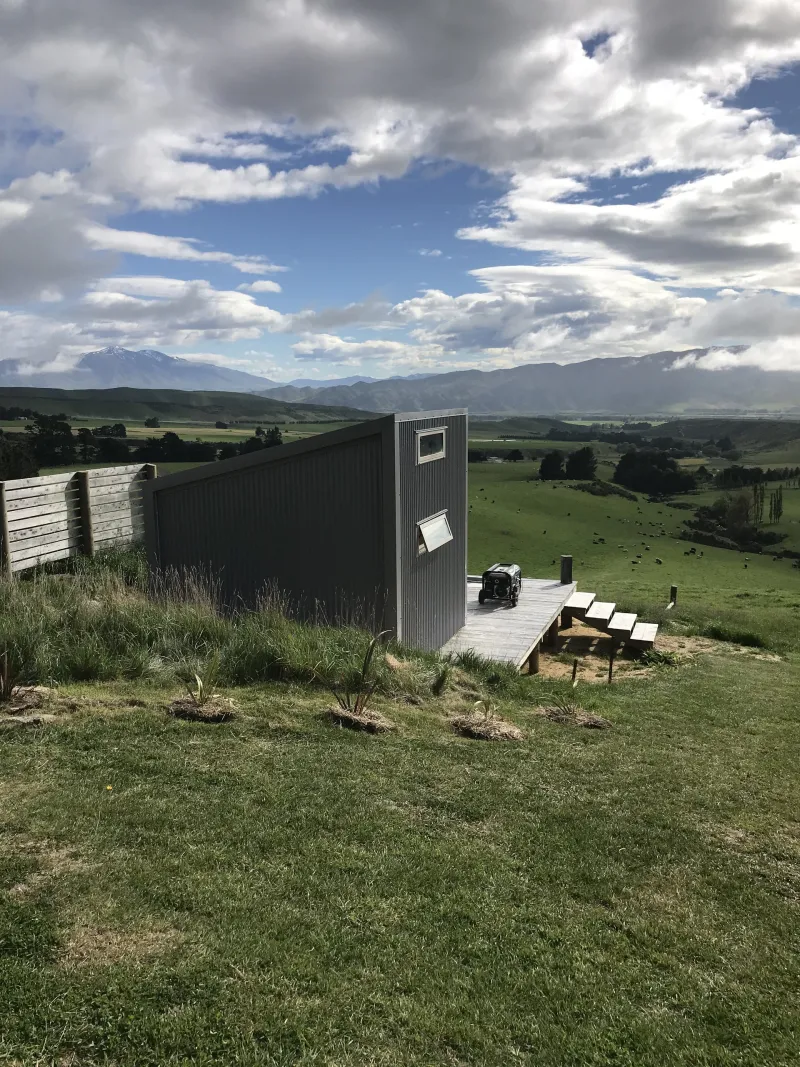

  • ER3627: 3.6m x 2.7m - 9.72m²   (Loft - 2.7m x 1.8m)

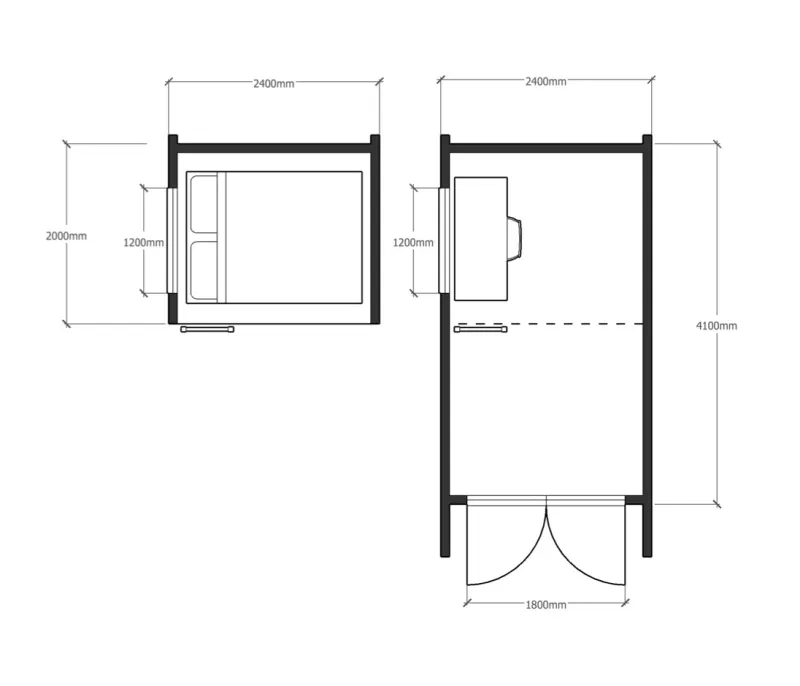

  • ER2441: 2.4m x 4.1m - 9.84m²   (Loft - 2.4m x 2.0m)

Floor plans and images are a representation only.

Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²

Available as Builders Kitset.

EURO CABIN MODEL SPECS
Frame: 90mm H1.2 Radiata
Floor: 20mm P/board, H3.2 joists
Cladding: Corrugate Zincalume with 180mm Hardiplank W/Boards
Roof: Corrugate Zincalume
Doors: Aluminium Frenchdoor, 2.0m high x 1.8m wide
Windows: Aluminium, 2 @ 0.4m high x 1.2m wide
Loft Floor: 20mm P/Board
KITSET LOCKUP SHELL
EXTRAS

LINING KIT - From $1700

Includes: Insulation - Pinkbatts, Plasterboard linings to cabin, Pine trim, Fixings and Fastenings.
MDF and 9mm ply are optional alternatives.

FOUNDATION KIT - From $780 (Layout dependent)

Includes: Piles, Bearers and Fixings.

OPTIONS
Doors: Change to slider or different sizes
Windows: Extra windows, different sizes
Cladding: Coloursteel
Floor: Treated plywood, underfloor insulation
Deck: Sizes as required
NOTE: Prices may vary due to location requirements

Kits can be supplied two ways:

MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising best material quotations for all materials delivered to site.

BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, joinery.
All materials including linings, delivered to site.

Finance available through TMF
