GABLE CABINS
Click to enlarge

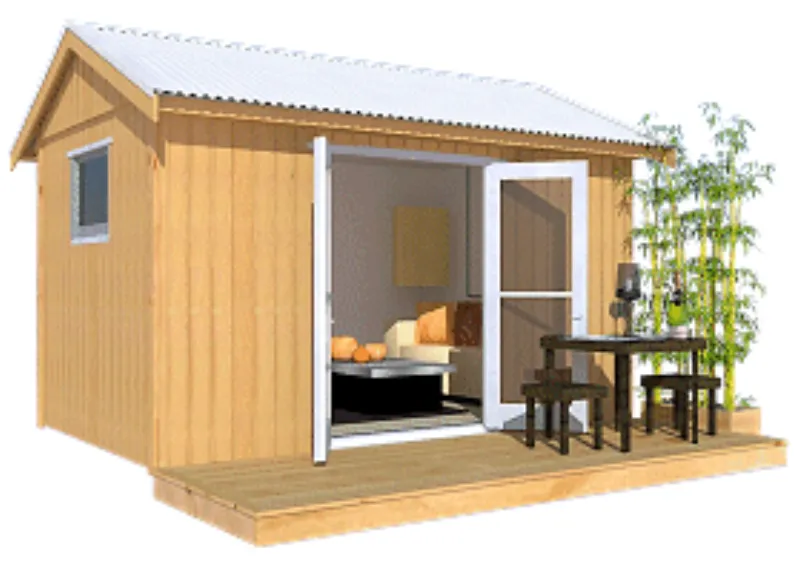

Gable Cabin - GC-Series
Builders Kitset available from $11,565
Get Your Gable Cabin Quote Here
Ideal sleepout, guest room, office, granny flat, bach. Gable roof cabins offer a traditional style with Shadowclad ply cladding.
Being under 10m² it is a suitable backyard addition, it will generally not require Building Consent, which makes them the ideal option for an owner build.

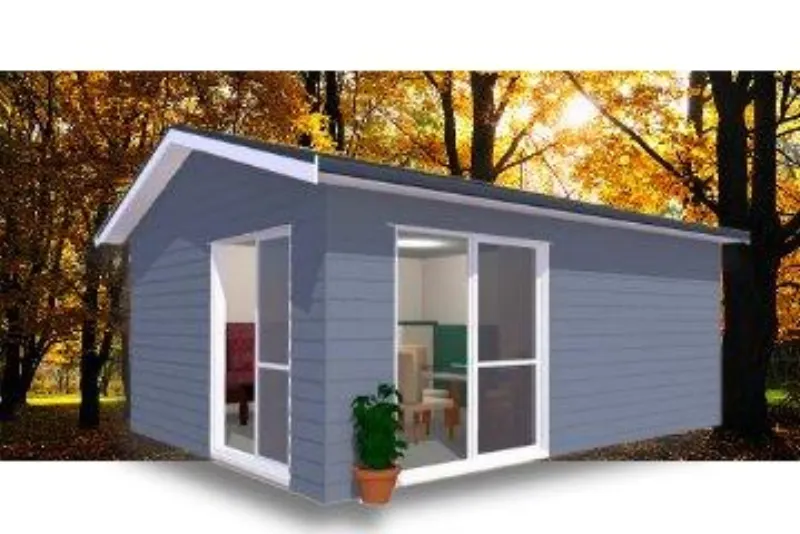

Also available in cabin, Bach and Grannyflat styles over 10m²:
Lengths: 4.8m to 12.0m. Widths: 2.4m to 6.0m.Floor Areas: 12m² to 72m²

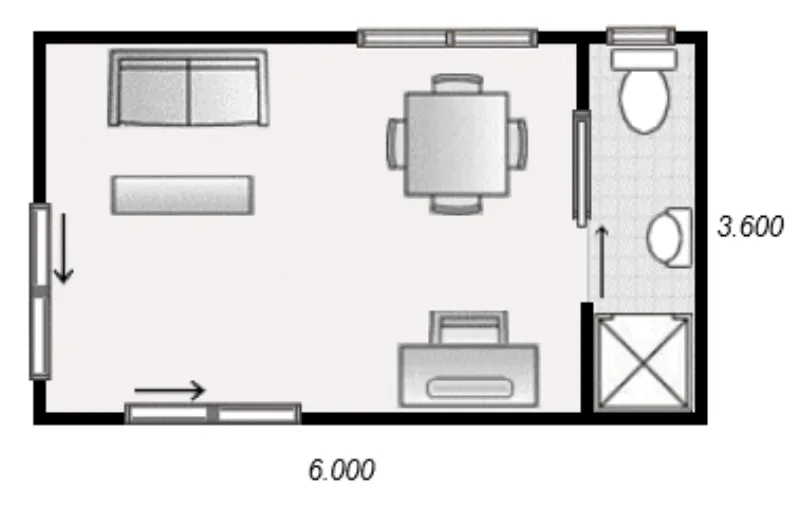

- Example: GB6036 - 6.0m L x 3.6m W, Area 21.6m²
Floor plans and images are a representation only.
Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²
Available as Builders Kitset.
Cabin kit sets include pre-assembled framing, Zincalume or Colorsteel roofing, Shadowclad or Hardiplank cladding and house quality French doors and windows.
Optional veranda and decks, and lining and insulation kits are available.

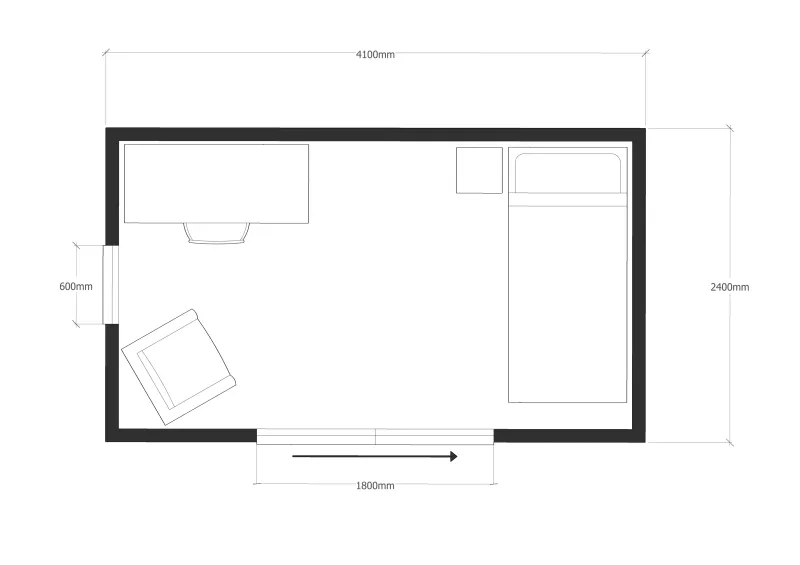

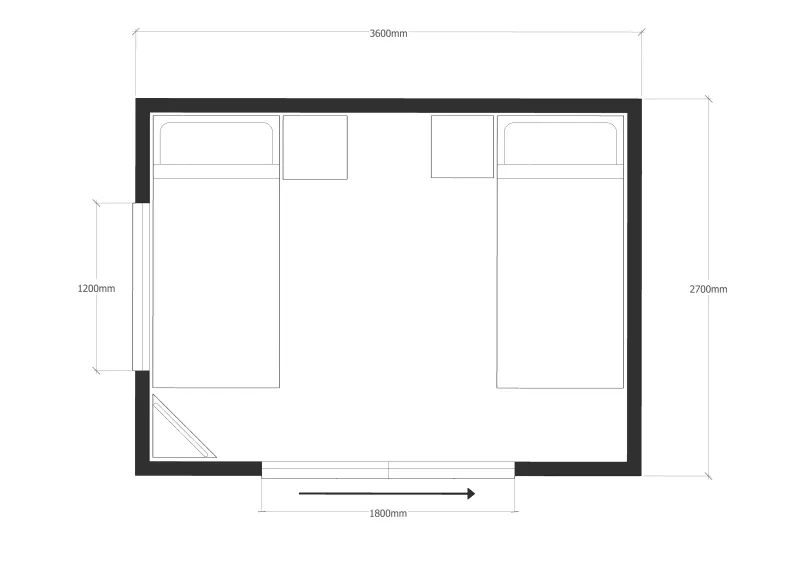

| GC-Cabins | Model: | GC-3627 | GC-4124 | |
 |
||||
| L length: | 3.6m | 4.1m | ||
| W Width: | 2.7m | 2.4m | ||
| H1 Roof Height: | 2.9m | 2.8m | ||
| H2 Wall Height: | 2.3m | 2.3m | ||
| Area: | 9.72m² | 9.84m² | ||
| Doors: | F/doors | F/doors | ||
| Windows: | 1 | 1 | ||
| GABLE CABIN SPECS | ||||
| Frame: | 90mm H1.2 Radiata | |||
| Floor: | 20mm P/board, H3.2 joists | |||
| Roof: | Colour Steel | |||
| Cladding: | Shadowclad Grooved H3 Plywood | |||
| Doors: | Aluminium French door, 2.0m high x 1.2m wide | |||
| Windows: | Aluminium Awning, 1 @ 0.8m high x 0.6m wide | |||
| KITSET LOCKUP SHELL | ||||
| EXTRAS
LINING KIT - From $1,450 Includes: Wall/Ceiling Insulation - Pinkbatts, Plasterboard linings to the cabin, Pine trim, Fixings and Fastenings. FOUNDATION KIT - From $1265 (Layout dependent) Includes: Piles, Bearers and Fixings. |
||||
| OPTIONS | ||||
| Doors: | Change to French door or different sizes | |||
| Windows: | Extra windows, different sizes | |||
| Cladding: | Hardiplank W/Board, Zincalume/Coloursteel, Plywood and Batten | |||
| Floor: | Treated plywood, underfloor insulation | |||
| Decks: | Other sizes available on request | |||
| Veranda: | 1.2m deep | |||
| Units: | Any kitchen, laundry or bathroom units required | |||
Kits can be supplied in two ways:
MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising the best material quotations for all materials delivered to the site.
BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, and joinery.
All materials including linings, delivered to site.
