METRO CABINS

Metro Cabin

Hover for zoomClick to enlarge

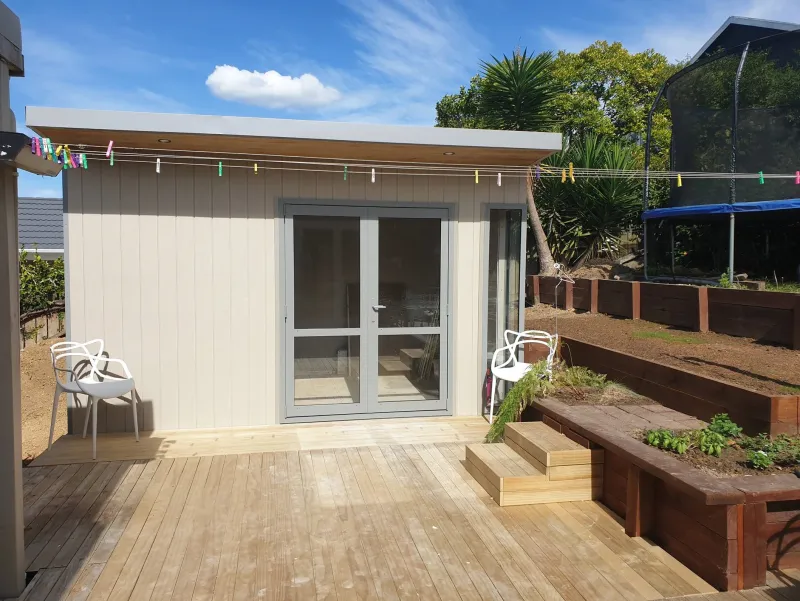

Metro CabinMetro CabinMT4124MT3627MT2441Metro: MT3627Metro: MT4124Model: MT3627

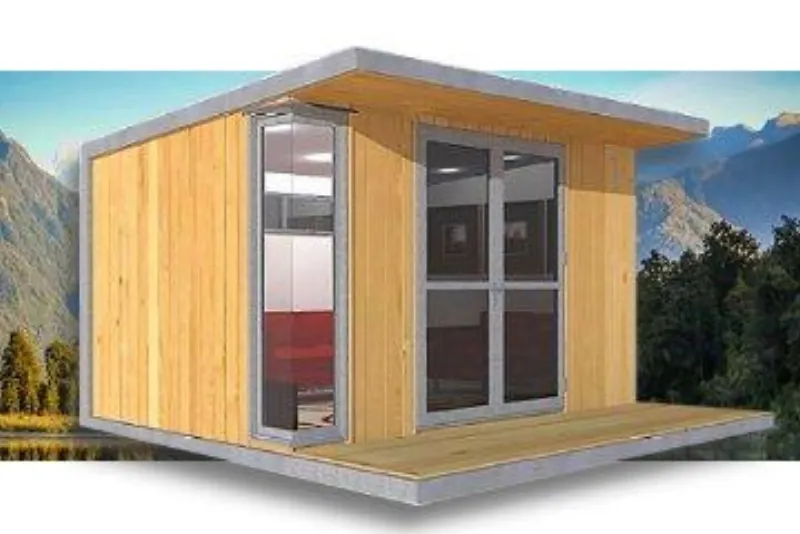

The Metro - MT-Series

Builders Kitset available from $13,250

The Metro offers the discerning buyer a modern design with integrated deck, ideal as a garden office, trendy cabin or games room, the MT series

No Building Consent Required

Being under 10m² it is a suitable backyard addition, it will generally not require Building consent, which makes them the ideal option for an owner build.

Models available:

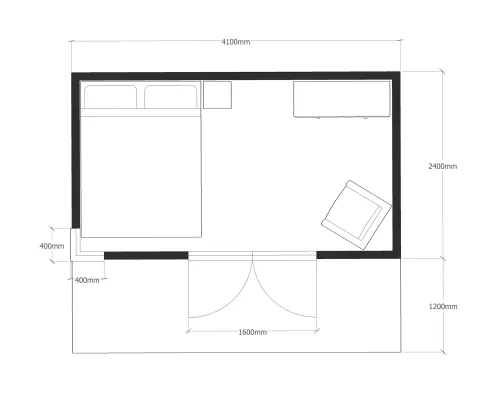

  • MT4124: 4.1m x 2.4m - 9.84m²   (Deck area - 1.2m x 3.6m)

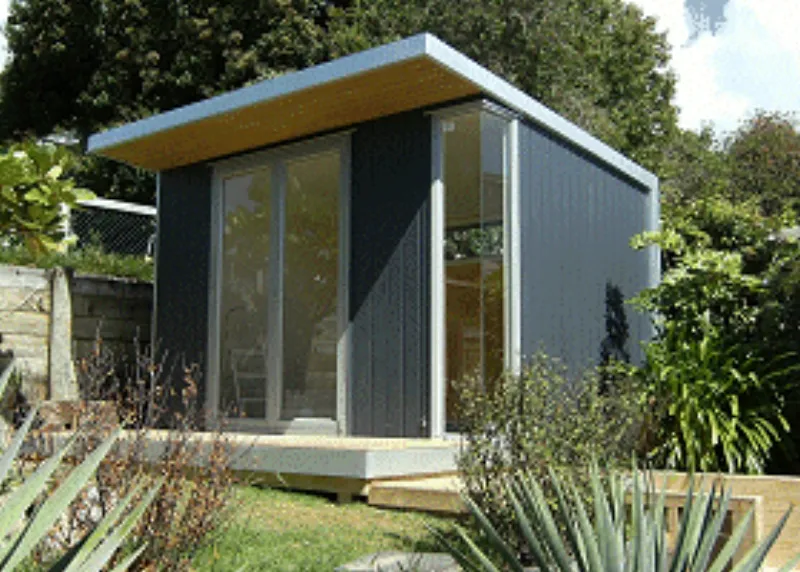

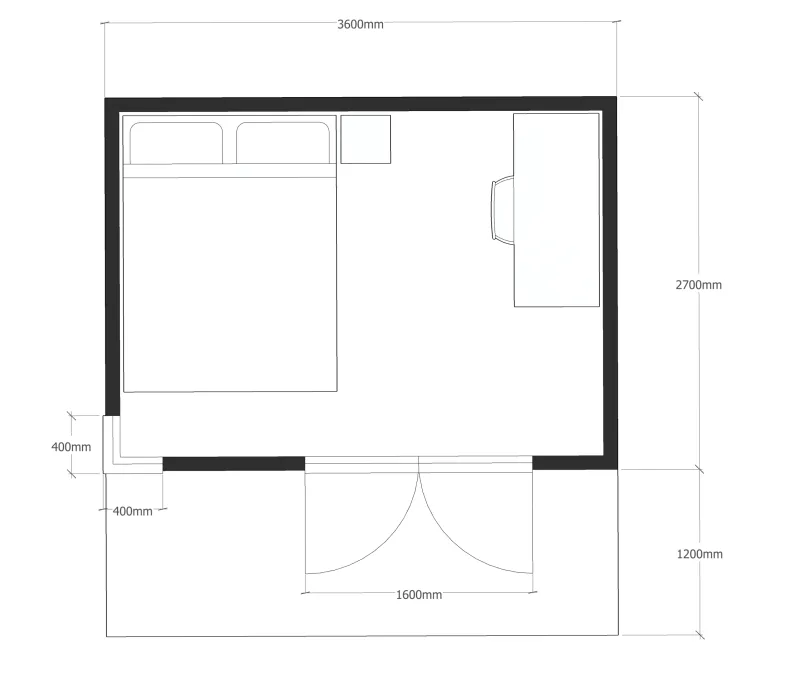

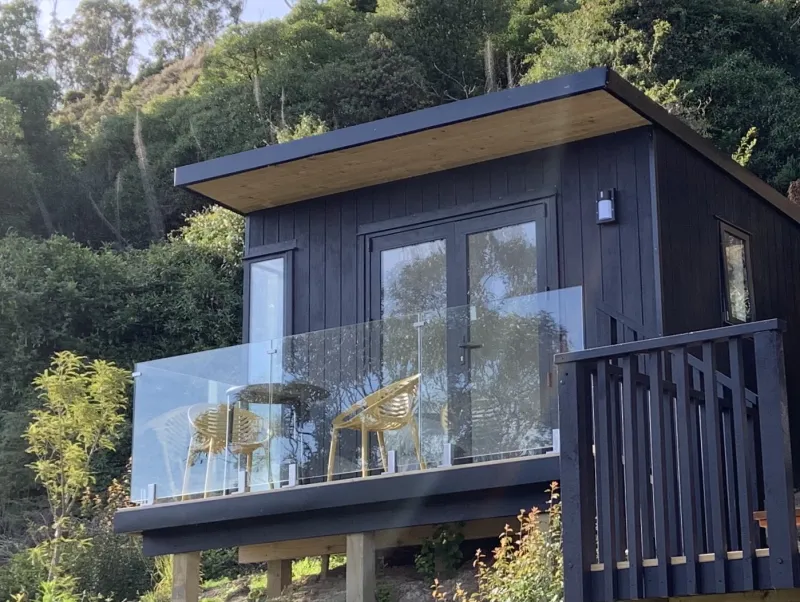

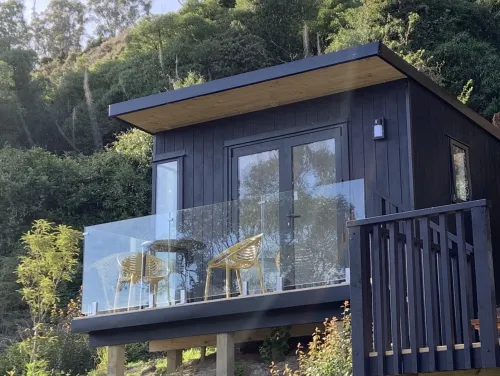

  • MT3627: 3.6m x 2.7m - 9.72m²   (Deck area - 1.2m x 4.1m)

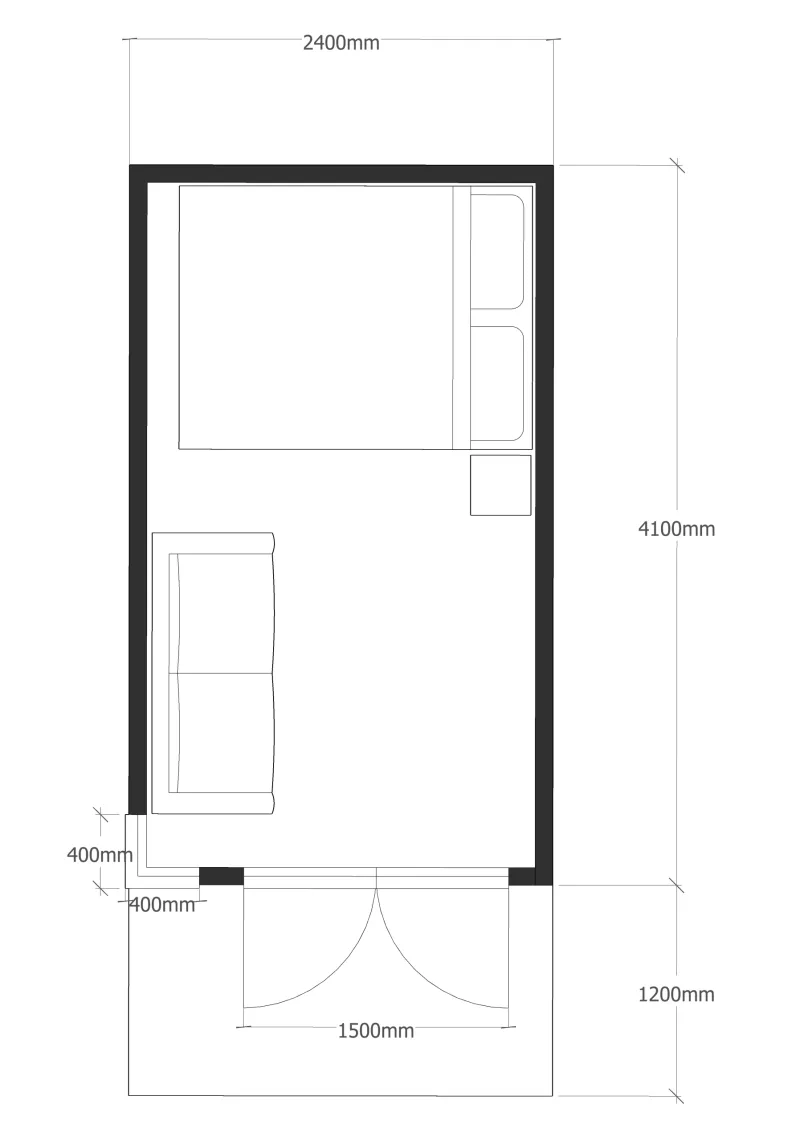

  • MT2441: 2.4m x 4.1m - 9.84m²   (Deck area - 1.2m x 2.4m)

Floor plans and images are a representation only.

Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²

Available as Builders Kitset.

METRO CABIN MODEL SPECS
  Frame:  90mm H1.2 Radiata
  Floor:  20mm P/board, H3.2 joists
  Cladding:  Shadowclad Grooved H3 Plywood
  Roof:  Trapezoidal Zincalume
  Doors:  Aluminium Frenchdoor, 2.0m high x 1.6m wide
  Windows:

 Aluminium Corner, 2.0m high x 0.4m wide each way

  Deck:  H3.2 pine
KITSET LOCKUP SHELL

EXTRAS

LINING KIT - From $1320

Includes: Insulation - Pinkbatts, Plasterboard linings to cabin, Pine trim, Fixings and Fastenings.
MDF and 9mm ply are optional alternatives.

FOUNDATION KIT - From $980 (Layout dependent)

Includes: Piles, Bearers and Fixings.

OPTIONS
  Doors:  Change to slider or different sizes
  Windows:  Extra windows, different sizes
  Cladding:  Plywood and batten, Hardiplank W/Board
  Floors:  Treated plywood, underfloor insulation
  Deck:  Increase size as required
NOTE: Prices may vary due to location requirements

Kits can be supplied two ways:

MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising best material quotations for all materials delivered to site.

BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, joinery.
All materials including linings, delivered to site.

Finance available through TMF
