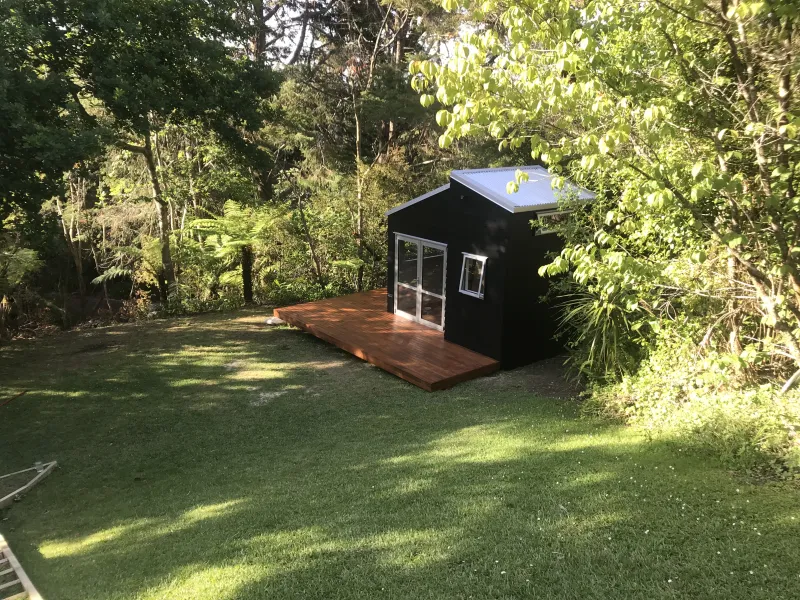

The Town House Cabin - TH-Series
Builders Kitset available from $14,705+gst
Get Your Town House Cabin Quote Here

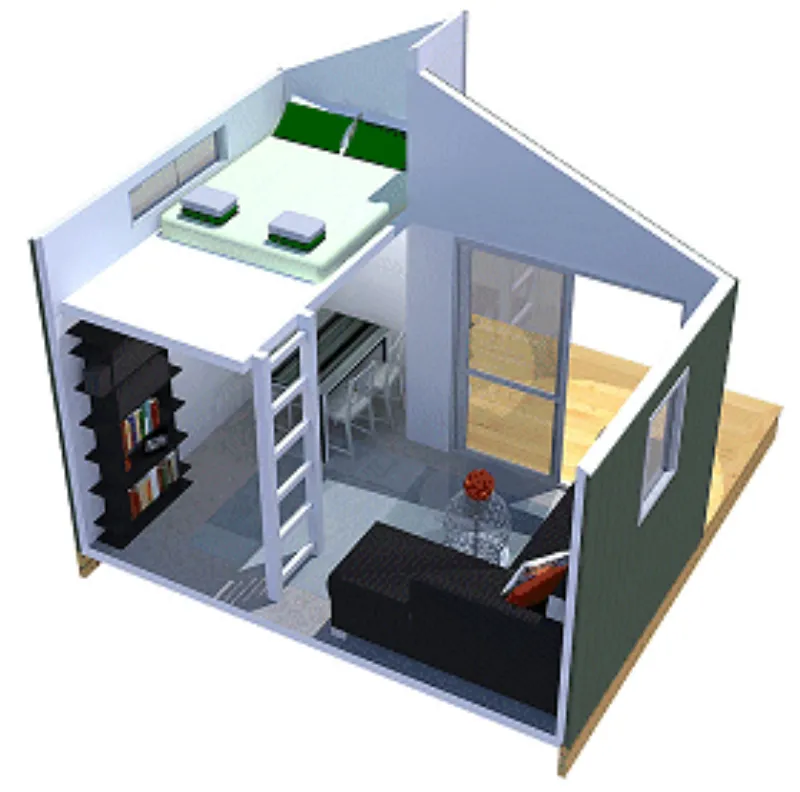

This 9.98m² Town House Cabin features a unique modern design with a loft mezzanine offering additional storage or sleeping area.
Available in one unique size it is an ideal sleepout, studio, games room or home office.
If your cabin is under 10m² and with a maximum roof height under 3.5m, it is a suitable backyard addition that will generally not require Building consent, which makes them the ideal option for an owner build.

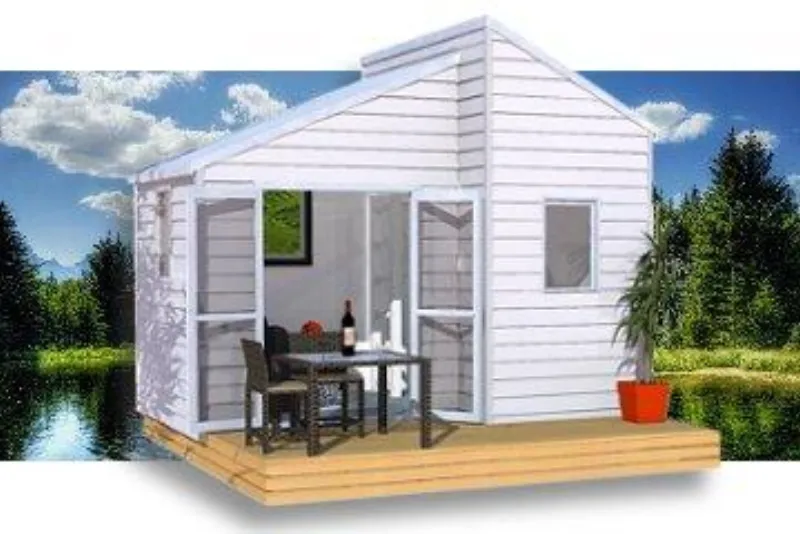

Note that the deck shown is optional and increases the cabin footprint to 4.0m x 4.2m.

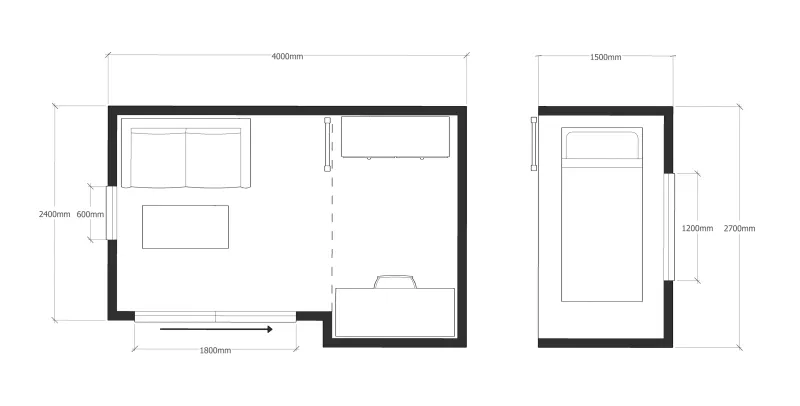

Floor plans and images are a representation only.
Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²
Available as Builders Kitset.
| TOWN HOUSE MODEL SPECS | ||
| Cabin Size: | 4.0m x 2.7m - 10.0m² | |
| Loft Size: | 2.7m x 1.6m - 4.3m² | |
| Frame: | 90mm, H1.2 Radiata | |
| Floor: | 20mm P/board, H3.2 Joists | |
| Cladding: | 180mm Hardiplank W/board | |
| Roof: | Colour Steel | |
| Doors: | Aluminium Sliding door, 2.0m high x 1.8m wide | |
| Windows: | Aluminium Awning, 1 @ .8m high x .6m wide, 1 @ .4m high x 1.2m wide | |
| Loft Floor: | 20mm P/board | |
| KITSET LOCKUP SHELL | ||
|
EXTRAS LINING KIT - From $2120+gst Includes: Wall/Ceiling Insulation - Pinkbatts, Plasterboard linings to the cabin, Pine trim, Fixings and Fastenings. FOUNDATION KIT - From $1450+gst (Layout dependent) Includes: Piles, Bearers and Fixings. |
||
| OPTIONS | ||
| Doors: | Change to a French door or different sizes | |
| Windows: | Extra windows, different sizes | |
| Cladding: | Shadowclad, Plywood and Batten, Coloursteel | |
| Floor: | Treated plywood, underfloor insulation | |
| Deck: | Sizes as required | |
| NOTE: Prices may vary due to location requirements | ||
Kits can be supplied in two ways:
MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising the best material quotations for all materials delivered to the site.
BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, and joinery.
All materials including linings, delivered to site.
