TRANSOM CABINS

Transom Cabin

Hover for zoomClick to enlarge

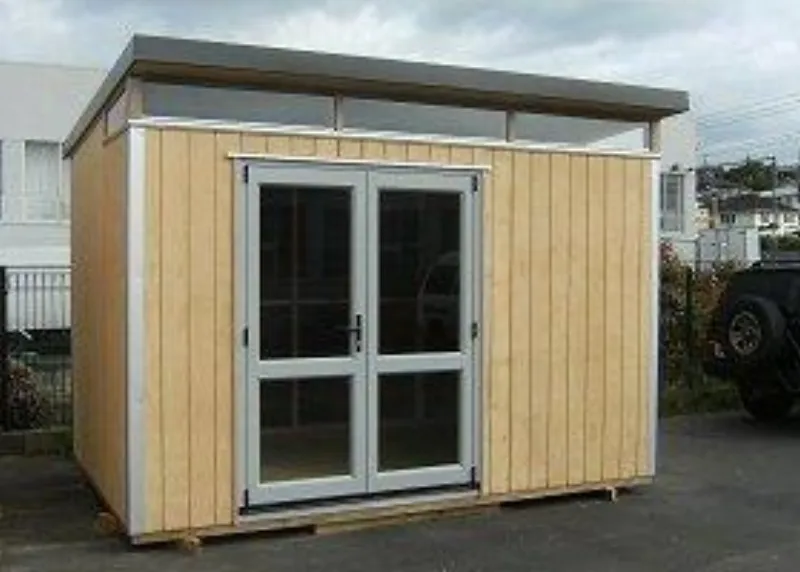

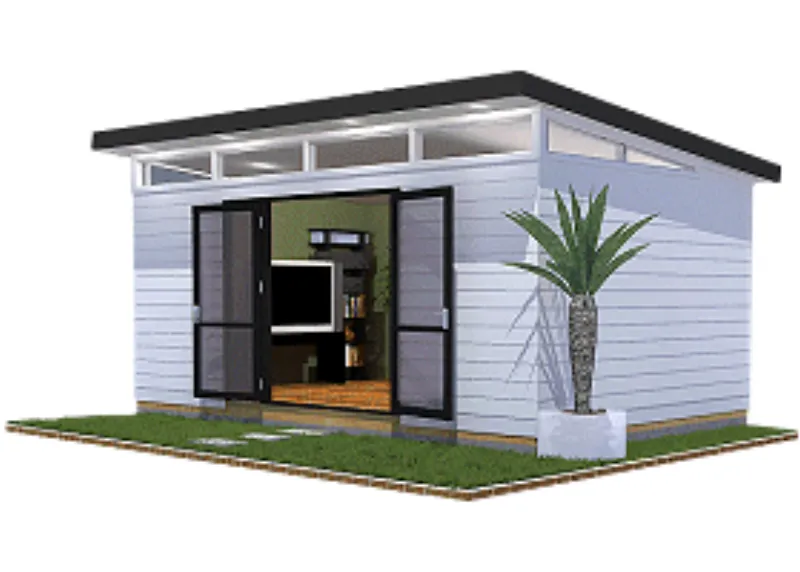

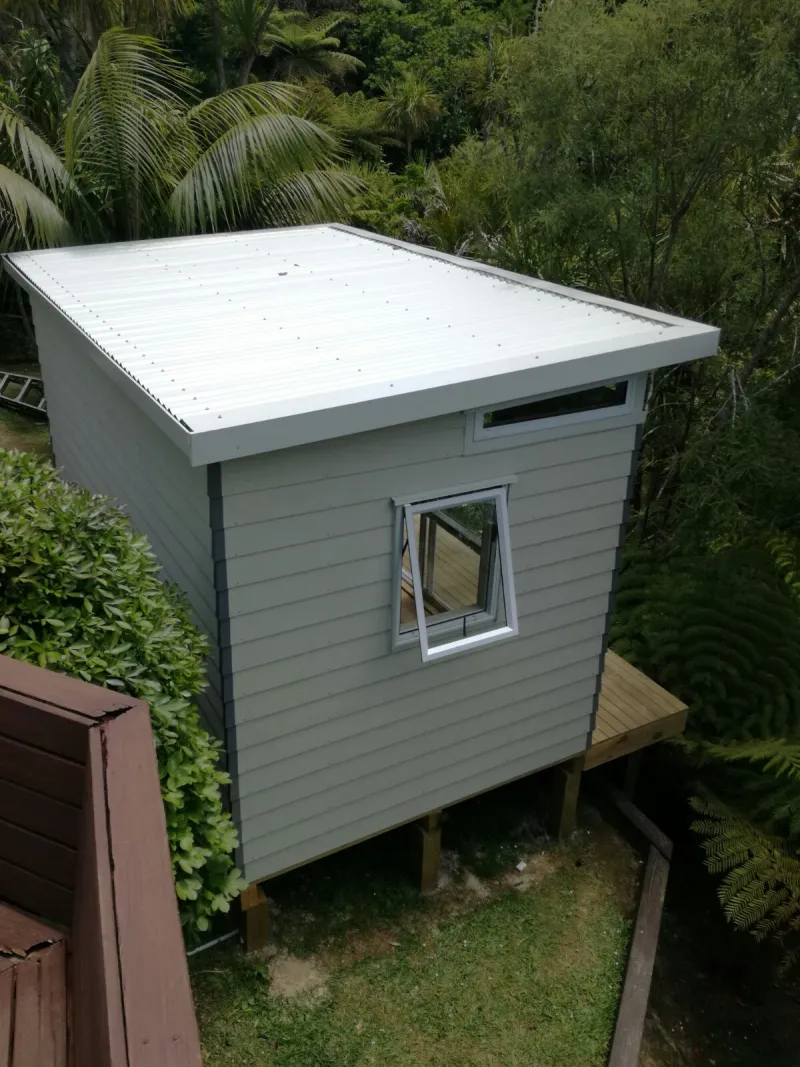

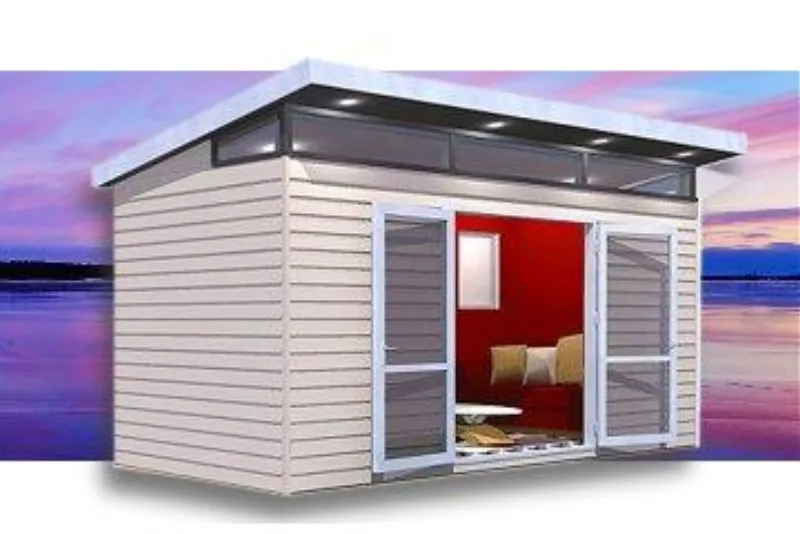

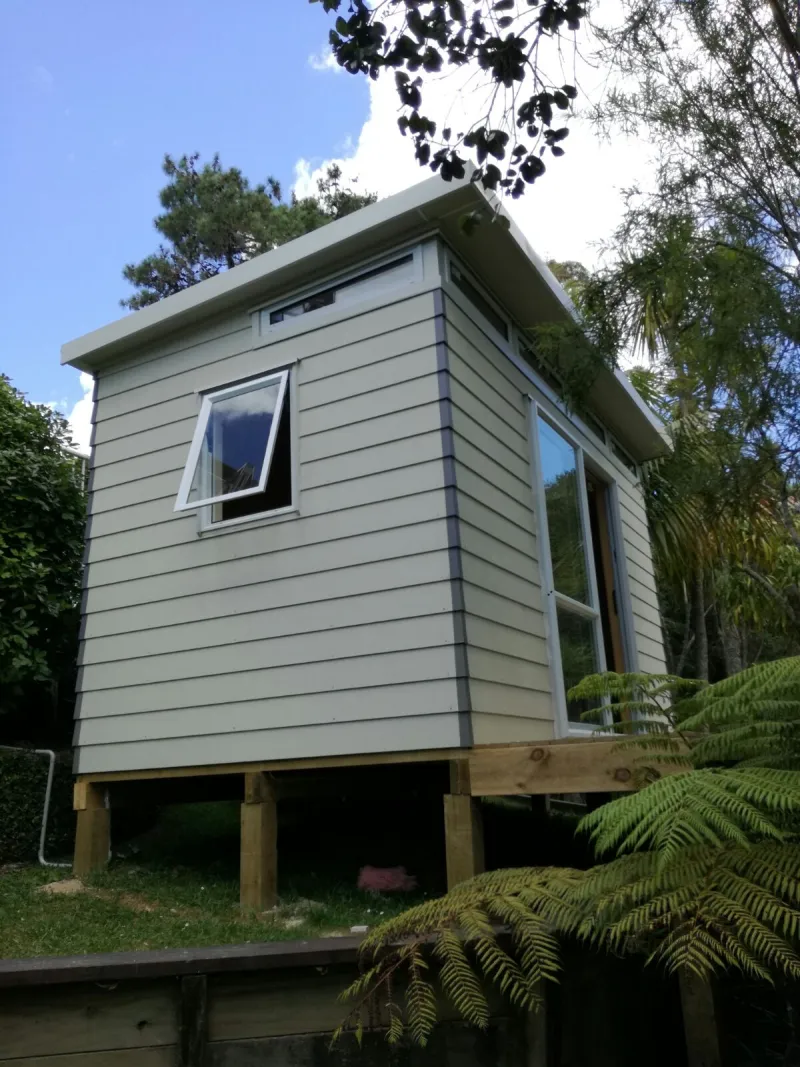

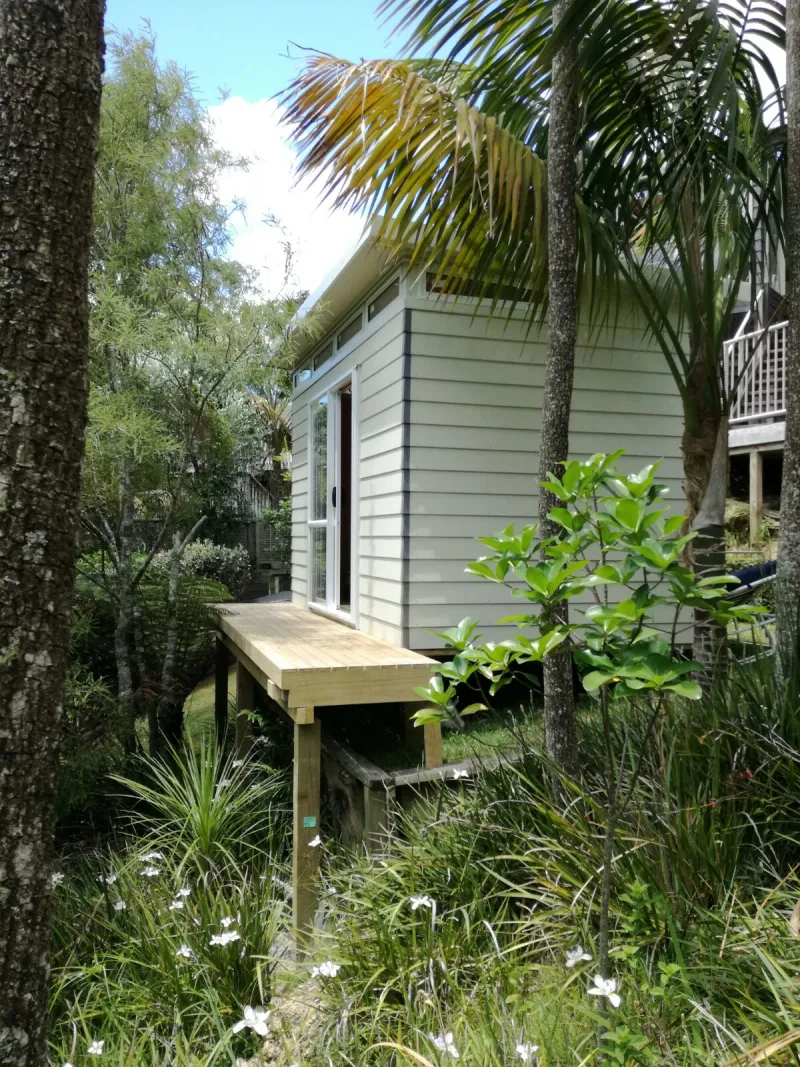

Transom CabinTransom CabinTR4124TR3627TR2441Transom: TR4124Transom: TR4124Transom: TR4124Transom 3627Transom Cabin

The Transom Cabin TR-Series

Builders Kitset available from $11,303

Ideal as a studio or garden office with its high wrap around transom windows and pent roof, the Transom series is a great option to create more space or an extra income source.

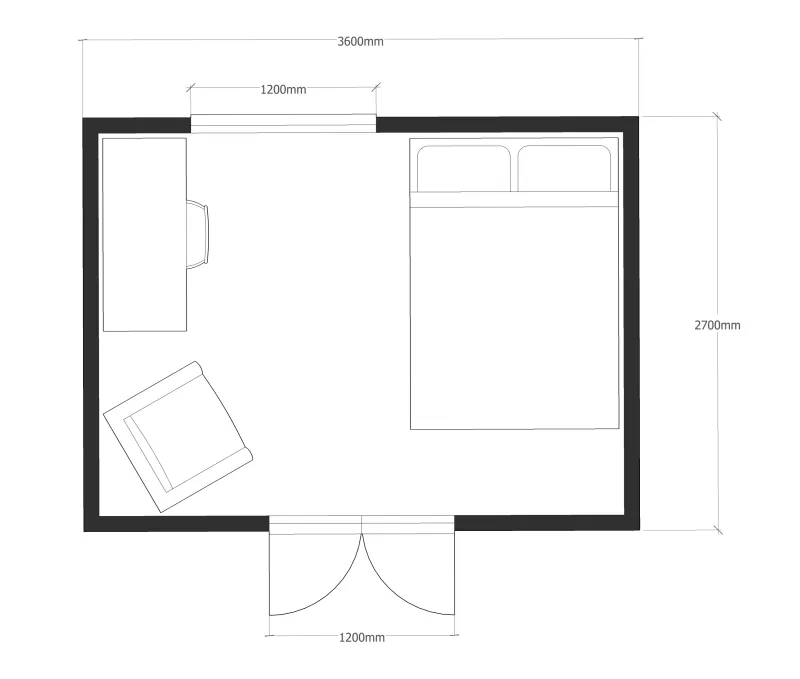

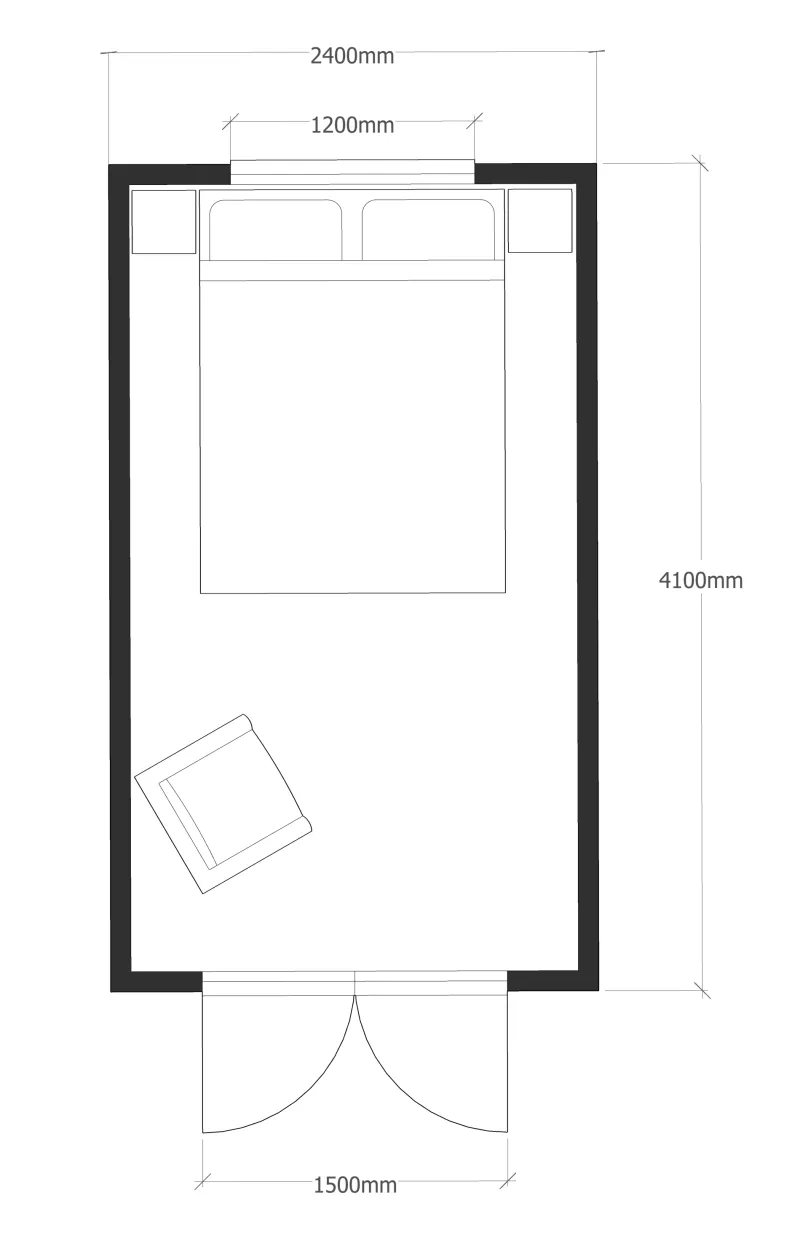

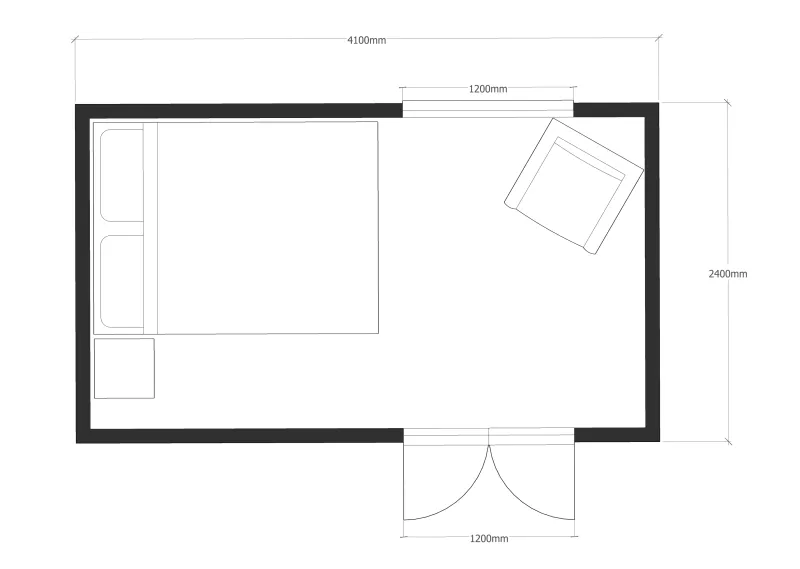

With 3 available models, the TR4124 (9.84m²), TR3627 (9.72m²) and TR2441 (9.84m²), it allows you to place it right where you need it.

No Building Consent Required

If your cabin is under 10m², it will generally not require Building consent, which makes them the ideal option for an owner build.

Floor plans and images are a representation only.

Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²

Available as Builders Kitset.

TRANSOM CABIN MODEL SPECS
Frame: 90mm, H1.2 Radiata
Floor: 20mm P/Board, H3.2 Joists
Cladding: 180mm Hardiplank W/board
Roof: Corrugate Zincalume
Doors: Aluminum, Frenchdoor, 2.0m high x 1.2m wide
Windows: Aluminum, 1 @ 0.4m high x 1.2m wide
Transom Windows: Aluminum 5-6 windows around top
KITSET LOCKUP SHELL

EXTRAS

LININGS KIT - From $1150

Includes: Insulation - Pinkbatts, Plasterboard linings to cabin, Pine trim, Fixings and Fastenings.
MDF and 9mm ply are optional alternatives.

FOUNDATION KIT - From $700 (Layout dependent)

Includes: Piles, Bearers and Fixings.

OPTIONS
Doors: Change to slider or different sizes
Windows: Extra windows, different sizes
Floor: Treated plywood, underfloor insulation
Decks: Sizes as required
NOTE: Prices may vary due to location requirements

Kits can be supplied two ways:

MS Merchant Supply
Ideal for competent builders. Includes CBNZ's unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising best material quotations for all materials delivered to site.

BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, joinery.
All materials including linings, delivered to site.

Finance available through TMF
